Fluidized Tunnel Freezer

Short Description:

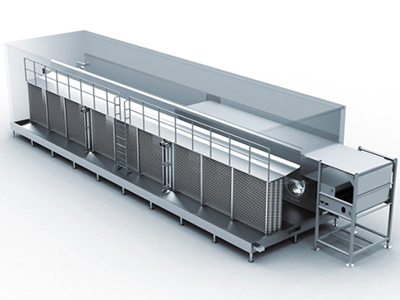

Fluidized Tunnel Freezer is a highly effective freezer used in the food industry for quick and efficient freezing of food products. This advanced technology uses a technique known as fluidization, which ensures that the food products are evenly frozen and do not stick together. One of the key advantages of this freezer is its rapid freezing rate, which can reduce the freezing time of products by up to 80%, compared to traditional freezing methods. Which will result in increasing of production capacity while maintaining the quality, texture, and flavor of their products. Fluidized Tunnel Freezer is an innovative and reliable solution for acceleration of production cycles, maintaining the quality of their products, and simplifying operations.

Inquiry

Overview

Features

Parameters

Application

Our Turn Key Service

Video

Overview

Features

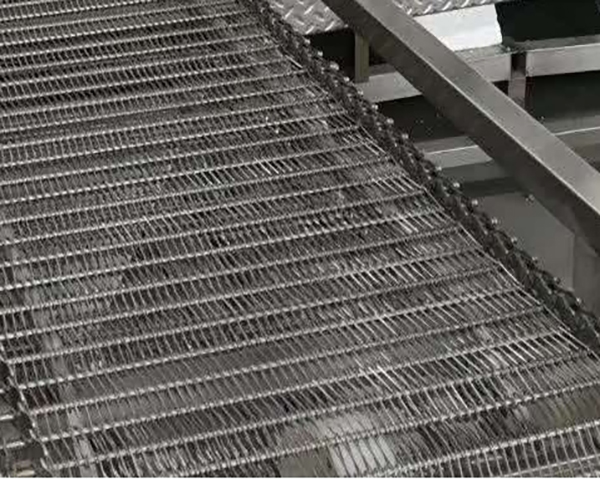

1. Optimized flow field distribution: The frozen product is lowered to -18℃ under the combined action of suspension and frequency conversion transmission net belt, and the uniform and rapid freezing is achieved. The combination of evaporator, fan, air guide device and vibration device forms uniform and stable suspension of frozen products and negative feedback of fluidized bed multi-direction single wind, which makes the single freezing of frozen products faster and unified quality. The evaporator is equipped with high efficiency, low noise, waterproof, moisture-proof and low temperature vortex fan.

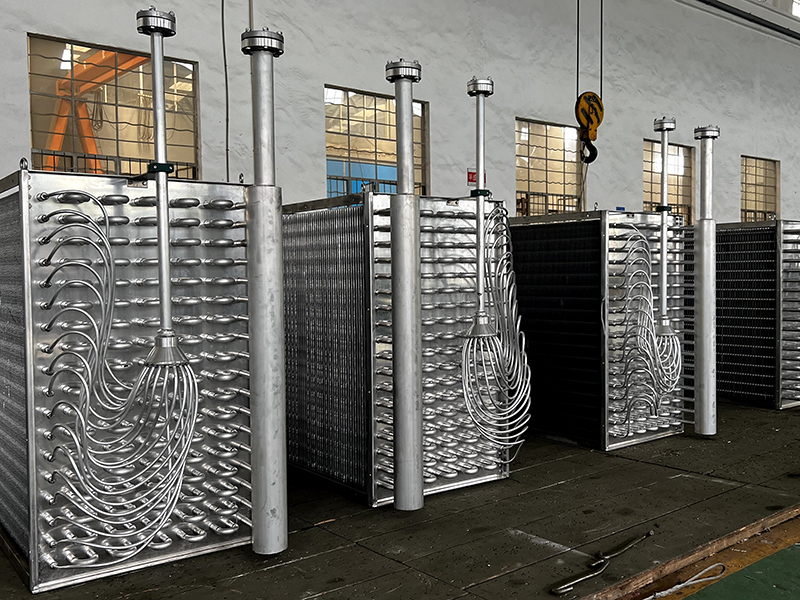

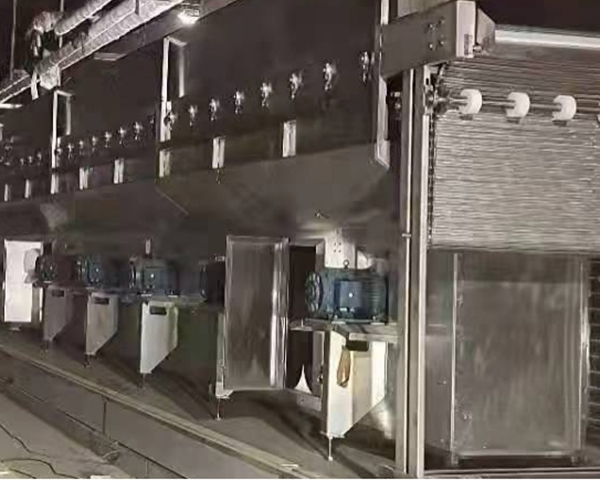

2. Evaporator design: Design process and structural parameters are tailored to the quick-freezing characteristics of frozen products, with the evaporator incorporating an extra-large effective surface area. Aluminum alloy fins with large fin spacing and variable fin spacing design are used to reduce the temperature difference between evaporator and cold storage, and equipment is selected and calculated based on an evaporating temperature of -42 degrees Celsius. The ample evaporating surface, coupled with high heat exchange efficiency, enables the design to consider the impact of inbound and outbound product temperatures, resulting in a delayed frosting effect that extends the working time of the quick-freezing machine.

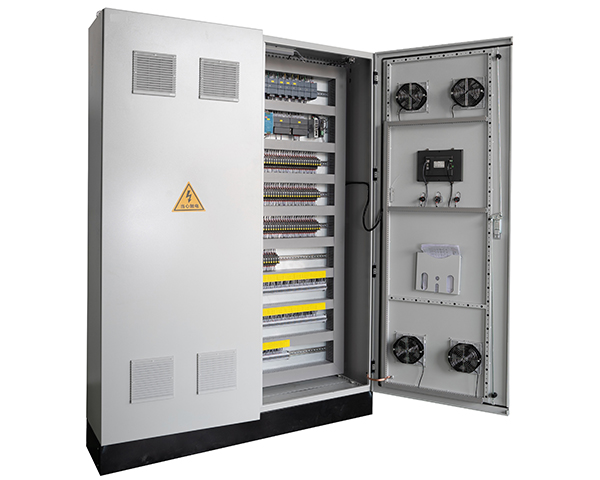

3. Intelligent control system: The system is responsible for controlling the parameters such as temperature, air flow, and belt speed to maintain optimal conditions for the quick freezing of products passing through the tunnel. The system consists of a human-machine interface (HMI) that allows the operator to view and control the system parameters. The HMI is connected to a Programmable Logic Controller (PLC), which is responsible for monitoring temperature sensors, flow meters, and other sensors that provide data on the system's performance. In case of any abnormality or fault in the system, the control system is equipped with alarms and notifications to alert the operator. The system logs all the critical data points, which helps in diagnosing any problems that might arise during the system's operation.

Parameters

Model	Freezing Ability (kg/h)	Freeze Time (min)	Machine Cooling Capacity (kw)	Installed Power (kw)	Overall Dimension （L×W×H）
IQF-1000	1000	8-40	200	45	7×4.5×4.6
IQF-2000	2000	8-40	340	80	12×4.5×4.6
IQF-3000	3000	8-40	480	100	16×4.6×4.6
IQF-4000	4000	8-40	630	150	20×4.6×4.6

Note:

1. The freezing capacity is based on the input (output) temperature of naked frozen green beans (+15 ℃/-18 ℃).
2. Cooling capacity of the unit: The evaporation temperature/condensation temperature is calculated in (-42 ℃/+35 ℃).
3. The length indicated in the table is the length of the equipment box, excluding the length of the feeding and discharging device. The length of the feeding and discharging device is determined according to the actual requirements of the customer.
4. The models listed in the above table are for reference only, and the specific plan issued according to customer requirements shall prevail.
