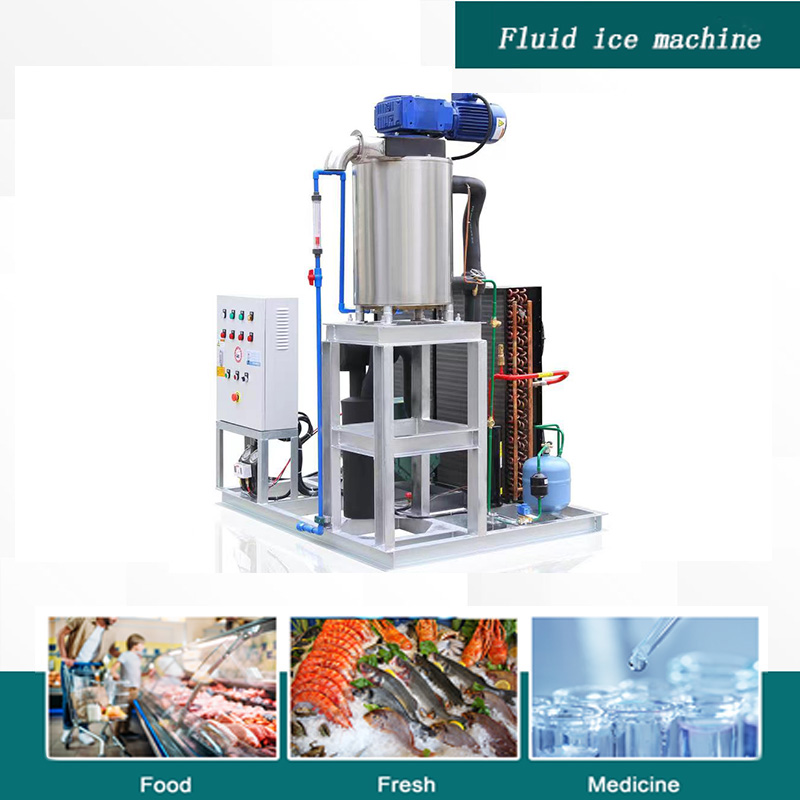

Fluid Ice Machine

Short Description:

A fluid ice machine is a special type of refrigeration equipment that uses water and refrigerant to mix to form a fluid ice suspension. It utilizes the principle of evaporation refrigeration to achieve refrigeration effects, and has unique principles and wide applications.

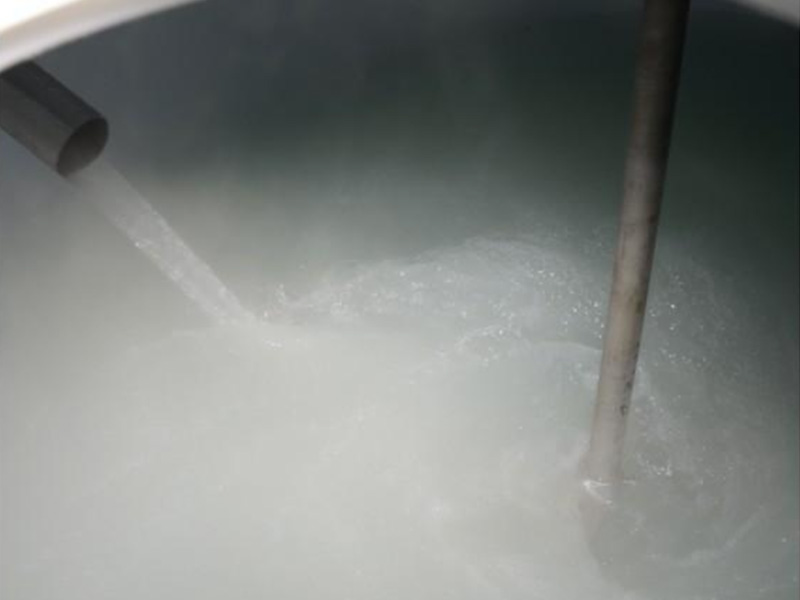

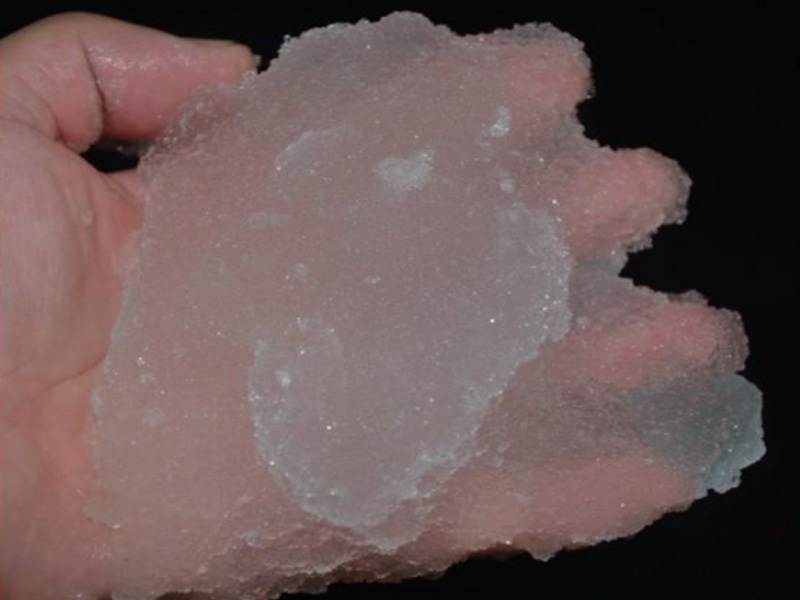

The working principle of a flow ice machine is to mix refrigerant and water to form a frozen solution, and then pump the frozen solution to the condenser to cool it to below -8 ℃. In the condenser, the frozen solution is dispersed into tiny ice crystals, which are then mixed with water through a vibrator and pumping system to form ice mud. Finally, pump the ice slurry to the place where it needs to be refrigerated for refrigeration or preservation.

Inquiry

Overview

Features

Parameters

Application

Our Turn Key Service

Video

Overview

Features

1. Flexibility: The flow ice machine can adjust the temperature and concentration of ice mud as needed to adapt to different types of refrigerated items. The operating parameters of the machine can be adjusted according to specific needs to achieve customized refrigeration effects.

2. Energy saving and environmental protection: Compared to traditional refrigeration methods, flow ice machines can achieve the same cooling effect with lower power consumption. The refrigeration dosage used in the production process of flowing ice is relatively small, reducing its impact on the environment.

3. Easy to operate: The operation of liquid ice is relatively simple, with an automated control system that can be automatically operated and adjusted by setting parameters. Operators only need simple operations and monitoring.

Parameters

SEA WATER TYPE SLURRY ICE MACHINE
Model		BL-L10	BL-L20	BL-L30	BL-L50	BL-L50	BL-L100	BL-L100	BL-L200	BL-L200
Capacity(Tons/24hours)		1	2	3	5	5	10	10	20	20
Refrigerant		R22/R404A/R507
Compressor Brand		Copeland/Bitzer/Refcomp			Copeland/Bitzer/Refcomp		Bitzer/Refcomp
Cooling Way		Water/Air	Water/Air	Water/Air	Water	Air	Water	Air	Water	Air
Compressor Power(Scroll)(HP)		2HP	3HP	4HP	7.5HP	9HP	/	/	/	/
Compressor Power(Piston)(HP)		1HP	2HP	4HP	9HP	9HP	14HP	18HP	28HP	34HP
Ice Cutter Motor(KW)		0.55	0.75	0.75	1.5	1.5	1.5	1.5	1.5*2	1.5*2
Circulating Water Pump(KW)		0.95	0.95	0.95	0.95	0.95	0.95	0.95	0.95*2	0.95*2
Cooling Water Pump(KW)		0.55	0.55	0.55	0.75	/	1.1	/	1.5	/
Machinery Unit Dimension	Length(mm)	740	1220	1220	1350	1710	1500	1880	1900	3480
	Width(mm)	660	1080	1080	1200	1430	1200	1580	1600	2020
	Height(mm)	1000	1210	1210	1100	2170	1750	2280	1600	1520
