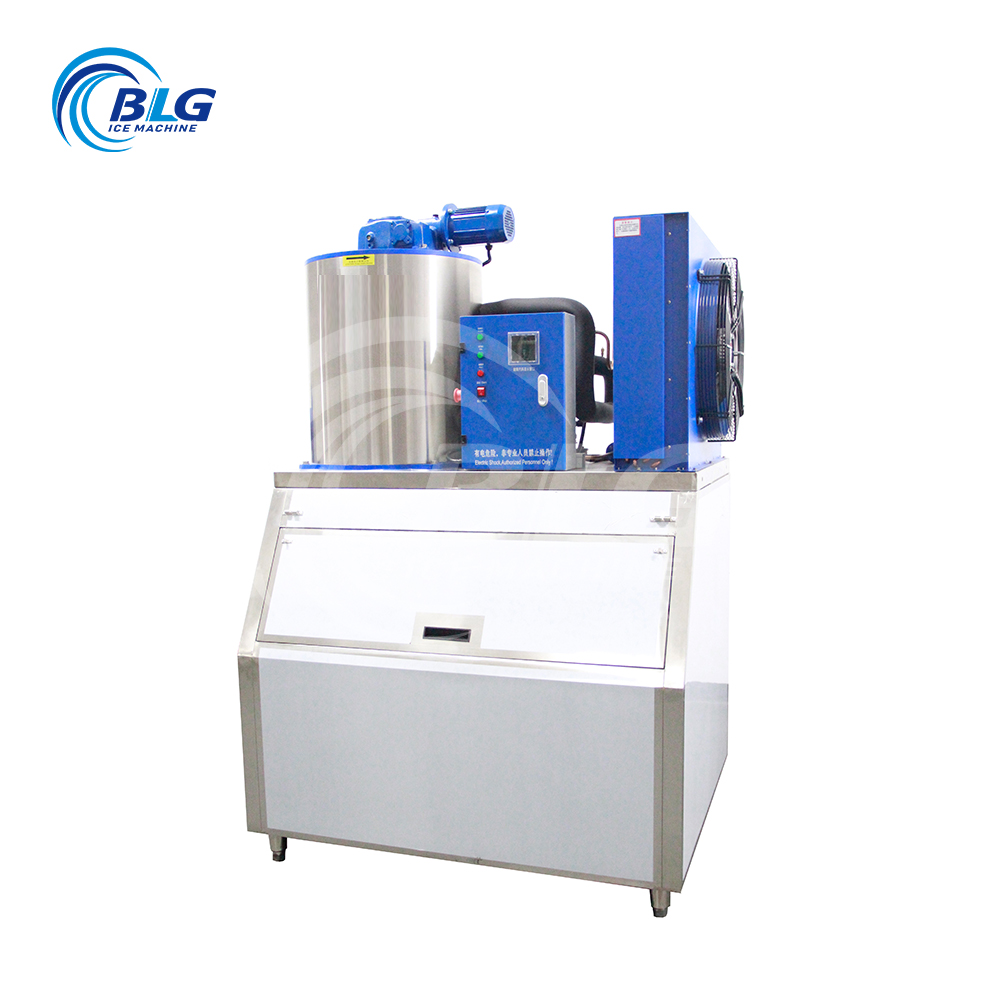

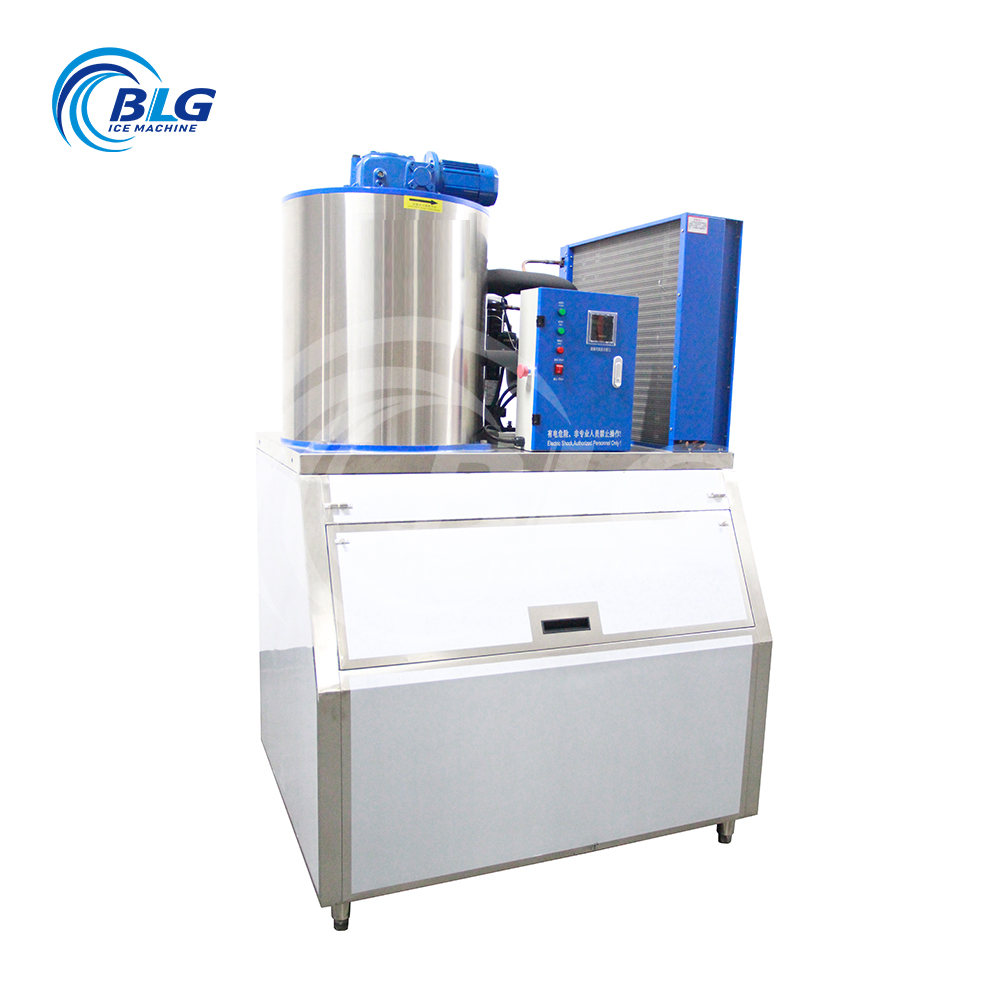

2 Ton Flake Ice Machine

Short Description:

BLG‘s flake ice machine has low losses and high production capacity.Flake Ice Machine is a type of ice maker that can be divided into freshwater ice maker and seawater ice maker based on water source. Generally, it is an industrial ice maker. Sheet ice is a thin, dry and loose white ice with a thickness ranging from 1.0 millimeters to 2.5 millimeters, with irregular surface shapes and a diameter of approximately 12 to 45 millimeters. Ice sheets have no sharp edges and corners, and will not puncture frozen objects. It can enter the gap between the cooled objects, reduce heat exchange, maintain the temperature of the ice, and have a good moisturizing effect. Sheet ice has excellent refrigeration performance and the characteristics of large and fast cooling capacity, so it is mainly used in various large-scale refrigeration facilities, food quick freezing, concrete cooling, and so on.


Overview

Features

2

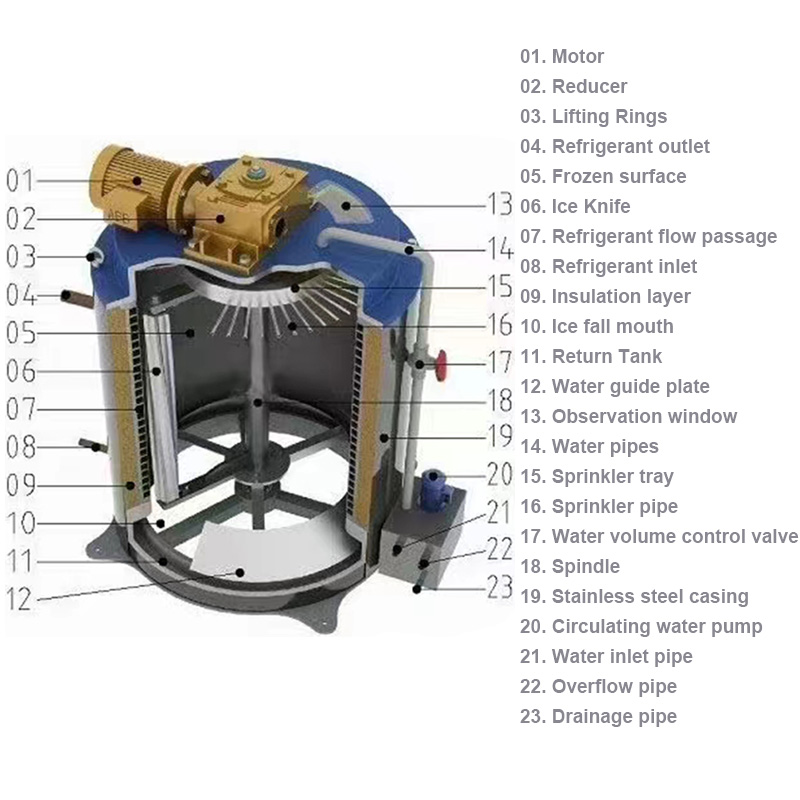

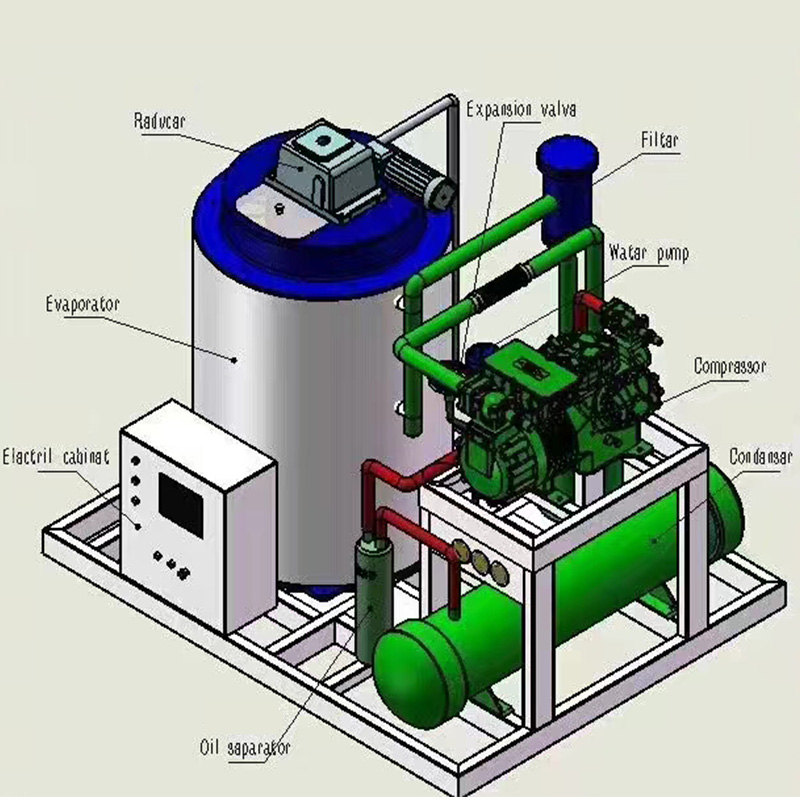

1. Principles of Ice Making:Water enters the water distribution tray from the inlet of the ice machine evaporator and is evenly sprinkled onto the inner wall of the evaporator through the sprinkler pipe, forming a water film; The water film exchanges heat with the refrigerant in the evaporator channel, causing a rapid decrease in temperature, forming a thin layer of ice on the inner wall of the evaporator. Under the compression of the ice knife, it breaks into flakes of ice and falls into the ice storage through the ice drop port. Part of the unfrozen water flows back to the cold water tank from the return port through the water receiving tray and passes through the cold water circulating pump.

2. Ice making cycle: By supplementing the water valve, the water automatically enters a water storage tank, and then is pumped through the flow control valve to the diversion head. There, the water is evenly sprayed onto the surface of the ice maker, flowing like a water curtain through the wall of the ice maker. The water is cooled to the freezing point, while the water that has not been evaporated and frozen will flow into the storage tank through the multi hole tank, restarting the cycle work.

3
1

3. Ice harvesting cycle: When the ice reaches the required thickness (normally, the ice thickness is 1.5-2.2MM), the hot air discharged by the compressor is redirected back into the ice maker clamp wall to replace the low-temperature liquid refrigerant. In this way, a thin film of water is formed between the ice and the evaporation tube wall, which will act as a lubricant when the ice falls freely into the groove below under the action of gravity. The water generated during the ice harvesting cycle will be returned to the storage tank through multi hole tanks, which also prevents wet ice from being discharged by the machine.

Parameters

 BOLANG Flake Ice Machine Capacity varies from 200kg~50t/day.

Model BL-P03 BL-P05 BL-P10 BL-P20 BL-P30 BL-P50 BL-P80 BL-P100 BL-P150 BL-P200 BL-P250 BL-P300
Capacity(Tons/24hours) 0.3 0.5 1 2 3 5 8 10 15 20 25 30
Refrigerant R22/R404A/R507
Compressor Brand KK Danfoss Bitzer/Refcomp Bitzer/Refcomp/Hanbell
Cooling Way Air Cooling Air/Water Cooling Water/Evaporative Cooling
Compressor Power (HP) 1.25 3 6 12 15 28 44 56 78 102 132 156
Ice Cutter Motor(KW) 0.2 0.2 0.2 0.37 0.37 0.37 0.75 0.75 1.5 1.5 1.5 1.5
Power of Circulating Water Pump(KW) 0.15 0.15 0.15 0.15 0.15 0.25 0.25 0.55 0.55 0.75 0.75 0.75
Power of Water Cooling Pump(KW) / / / / / 2.2 4 4 4 5.5 5.5 7.5
Cooling Fan Motor(KW) 0.19 0.38 0.38 0.38 4*0.41 0.75 1.5 1.5 / / / /
Ice Machine Size L(mm) 950 1280 1280 1600 1663 1680 2200 2200 3000 4150 4150 6200
W(mm) 650 800 1250 1350 1420 1520 1980 1980 1928 2157 2157 2285
H(mm) 700 800 893 1090 1410 1450 1700 1700 2400 2250 2250 2430

Bolang sheet ice machines include freshwater sheet ice machines and seawater sheet ice machines. The following information is about freshwater sheet ice machines. If you are interested in seawater sheet ice machines, you can contact our sales consultant for more information.

Application

食品加工

Food processing

蔬菜水果保鲜

Vegetable and fruit preservation

禽肉加工

Poultry meat processing

水产海鲜

Aquatic seafood

混凝土搅拌

Concrete mixing

医学

Medicine
