Flake ice machine for various large-scale refrigeration facilities, food quick freezing, and concrete cooling Featured Image

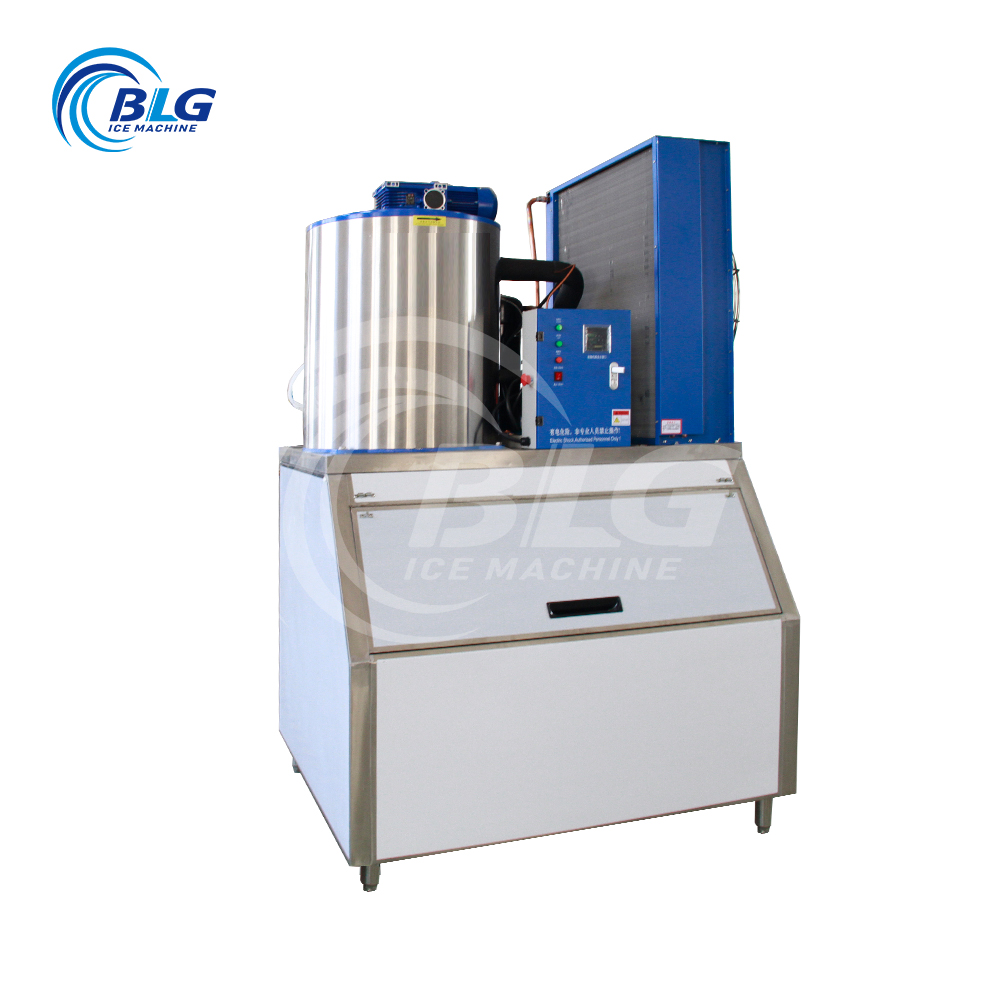

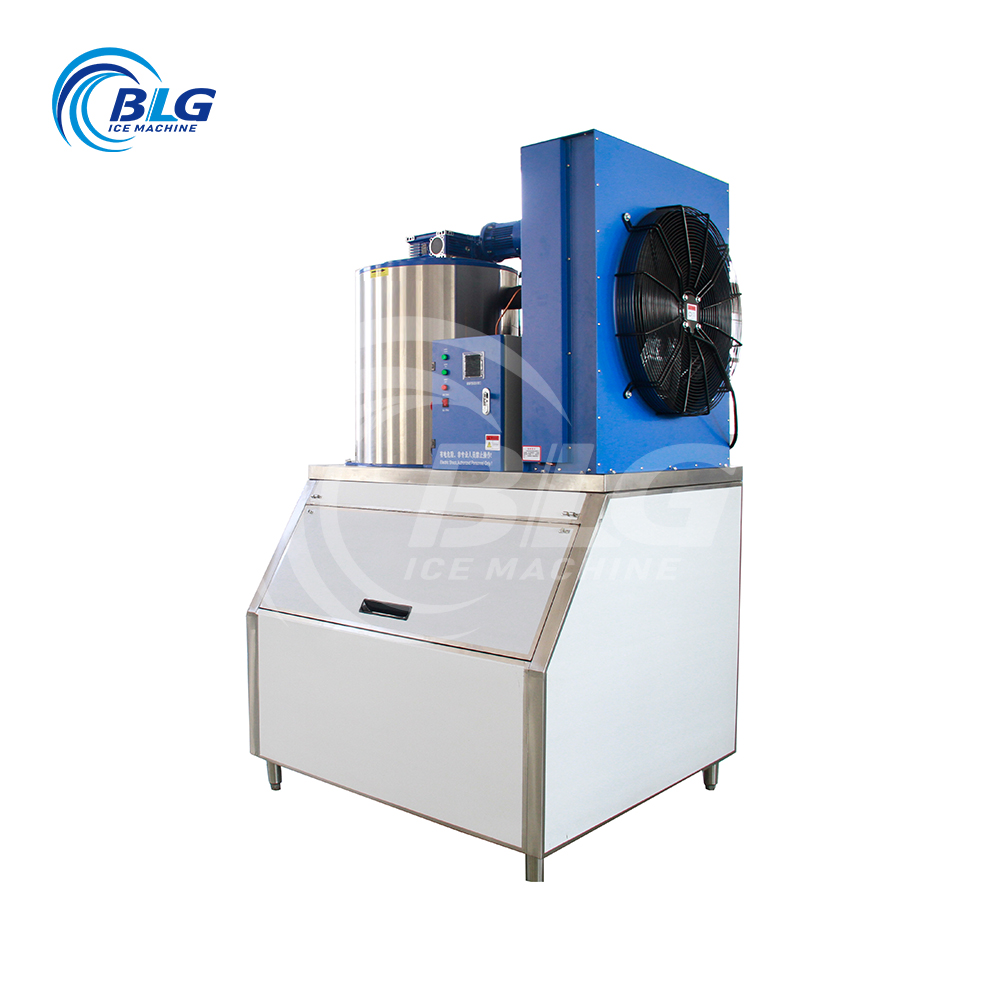

1.5 Ton Flake Ice Machine

Short Description:

BLG‘s flake ice machine has low losses and high production capacity.Flake Ice Machine is a type of ice maker that can be divided into freshwater ice maker and seawater ice maker based on water source. Generally, it is an industrial ice maker. Sheet ice is a thin, dry and loose white ice with a thickness ranging from 1.0 millimeters to 2.5 millimeters, with irregular surface shapes and a diameter of approximately 12 to 45 millimeters. Ice sheets have no sharp edges and corners, and will not puncture frozen objects. It can enter the gap between the cooled objects, reduce heat exchange, maintain the temperature of the ice, and have a good moisturizing effect. Sheet ice has excellent refrigeration performance and the characteristics of large and fast cooling capacity, so it is mainly used in various large-scale refrigeration facilities, food quick freezing, concrete cooling, and so on.

Inquiry

Overview

Features

Parameters

Application

Our Turn Key Service

Video

Overview

Features

1. Principles of Ice Making：Water enters the water distribution tray from the inlet of the ice machine evaporator and is evenly sprinkled onto the inner wall of the evaporator through the sprinkler pipe, forming a water film; The water film exchanges heat with the refrigerant in the evaporator channel, causing a rapid decrease in temperature, forming a thin layer of ice on the inner wall of the evaporator. Under the compression of the ice knife, it breaks into flakes of ice and falls into the ice storage through the ice drop port. Part of the unfrozen water flows back to the cold water tank from the return port through the water receiving tray and passes through the cold water circulating pump.

2. Ice making cycle: By supplementing the water valve, the water automatically enters a water storage tank, and then is pumped through the flow control valve to the diversion head. There, the water is evenly sprayed onto the surface of the ice maker, flowing like a water curtain through the wall of the ice maker. The water is cooled to the freezing point, while the water that has not been evaporated and frozen will flow into the storage tank through the multi hole tank, restarting the cycle work.

3. Ice harvesting cycle: When the ice reaches the required thickness (normally, the ice thickness is 1.5-2.2MM), the hot air discharged by the compressor is redirected back into the ice maker clamp wall to replace the low-temperature liquid refrigerant. In this way, a thin film of water is formed between the ice and the evaporation tube wall, which will act as a lubricant when the ice falls freely into the groove below under the action of gravity. The water generated during the ice harvesting cycle will be returned to the storage tank through multi hole tanks, which also prevents wet ice from being discharged by the machine.

Parameters

BOLANG Flake Ice Machine Capacity varies from 200kg~50t/day.

Model		BL-P03	BL-P05	BL-P10	BL-P20	BL-P30	BL-P50	BL-P80	BL-P100	BL-P150	BL-P200	BL-P250	BL-P300
Capacity(Tons/24hours)		0.3	0.5	1	2	3	5	8	10	15	20	25	30
Refrigerant		R22/R404A/R507
Compressor Brand		KK	Danfoss		Bitzer/Refcomp					Bitzer/Refcomp/Hanbell
Cooling Way		Air Cooling				Air/Water Cooling				Water/Evaporative Cooling
Compressor Power (HP)		1.25	3	6	12	15	28	44	56	78	102	132	156
Ice Cutter Motor(KW)		0.2	0.2	0.2	0.37	0.37	0.37	0.75	0.75	1.5	1.5	1.5	1.5
Power of Circulating Water Pump(KW)		0.15	0.15	0.15	0.15	0.15	0.25	0.25	0.55	0.55	0.75	0.75	0.75
Power of Water Cooling Pump(KW)		/	/	/	/	/	2.2	4	4	4	5.5	5.5	7.5
Cooling Fan Motor(KW)		0.19	0.38	0.38	0.38	4*0.41	0.75	1.5	1.5	/	/	/	/
Ice Machine Size	L(mm)	950	1280	1280	1600	1663	1680	2200	2200	3000	4150	4150	6200
	W(mm)	650	800	1250	1350	1420	1520	1980	1980	1928	2157	2157	2285
	H(mm)	700	800	893	1090	1410	1450	1700	1700	2400	2250	2250	2430

Bolang sheet ice machines include freshwater sheet ice machines and seawater sheet ice machines. The following information is about freshwater sheet ice machines. If you are interested in seawater sheet ice machines, you can contact our sales consultant for more information.
