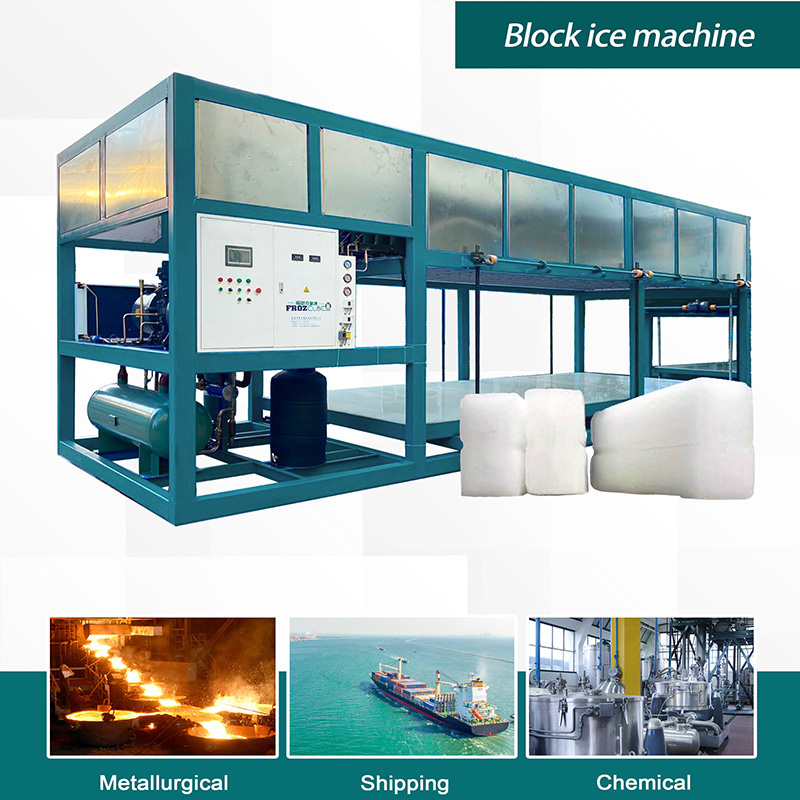

One Ton Block Ice Machine

Short Description:

BOLANG‘s block ice machine is a type of ice maker that produces ice blocks with the largest overall size, small contact area with the outside world, and difficulty in melting. Ice cubes can be crushed into ice cubes of various sizes according to different ice use methods, and are suitable for all places where ice is used, such as ice factory, supermarket ice fresh, self-service hot pot, restaurant, vegetable and fruit preservation transportation, aquatic preservation, aquatic processing, meat processing, slaughter processing cooling, chemical dye cooling, ice factory, concrete mixing cooling, coal mine cooling, ocean fishing, bio pharmaceutical, Dry ski slope Real ice rinks, cooling of large factories, and viewing of ice sculptures. Ice cubes can be divided into milky white ice cubes, colored ice cubes, and transparent ice cubes.


Overview

Features

1快速制冰

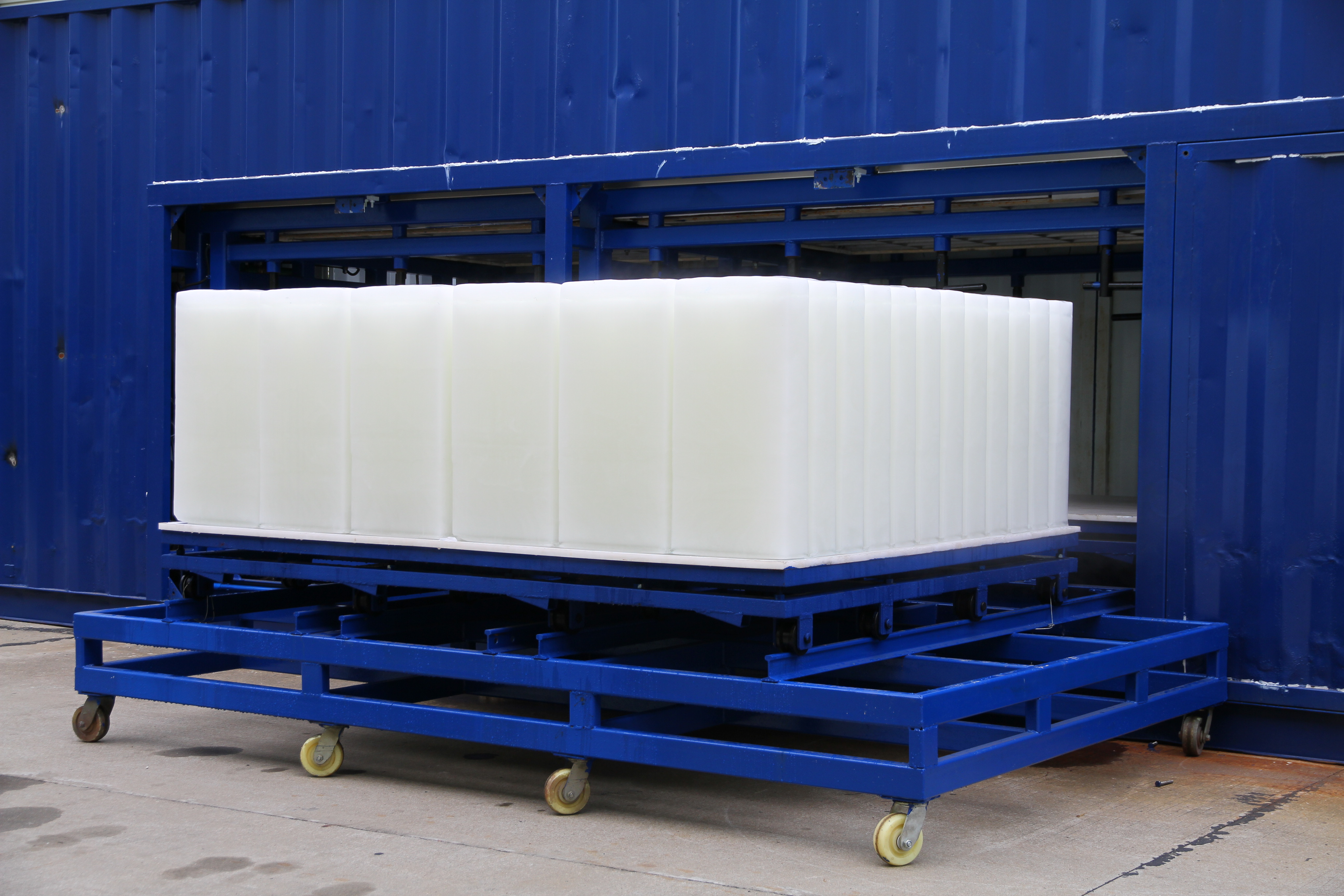

1. Rapid ice making:The direct cooling block ice machine adopts a direct cooling method, allowing the ice blocks to come into direct contact with the cooling surface, thereby accelerating the ice making speed.The ice cube machine can quickly produce a large amount of block ice, suitable for places that require a large amount of ice cubes, such as bars, restaurants, and supermarkets.

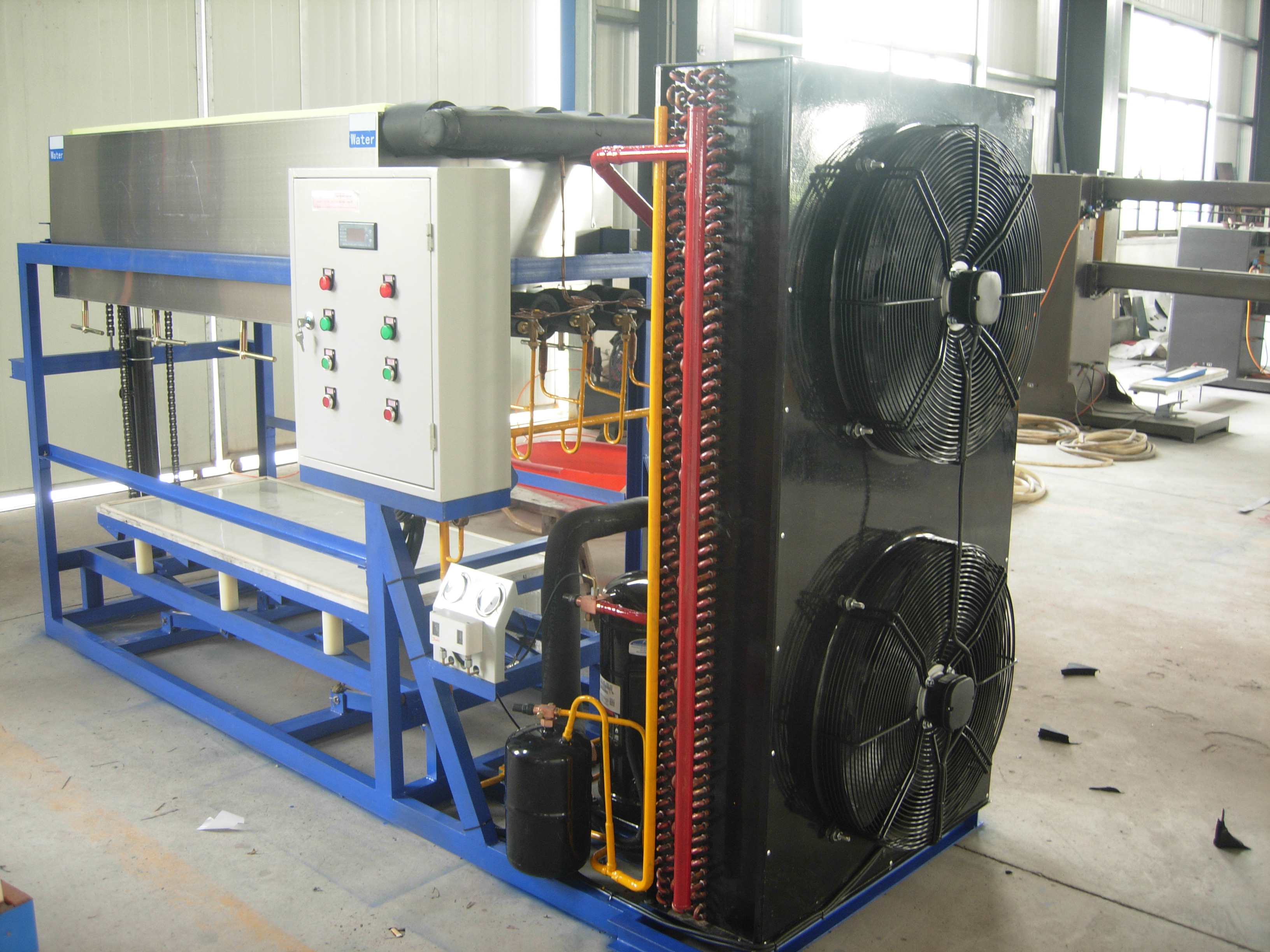

2. High efficiency: The direct cooling ice cube machine can produce uniform and sturdy ice cubes with stable and reliable quality. The design of the ice maker enables it to quickly remove heat, thereby improving ice making efficiency.

2高效率
3易于清洁

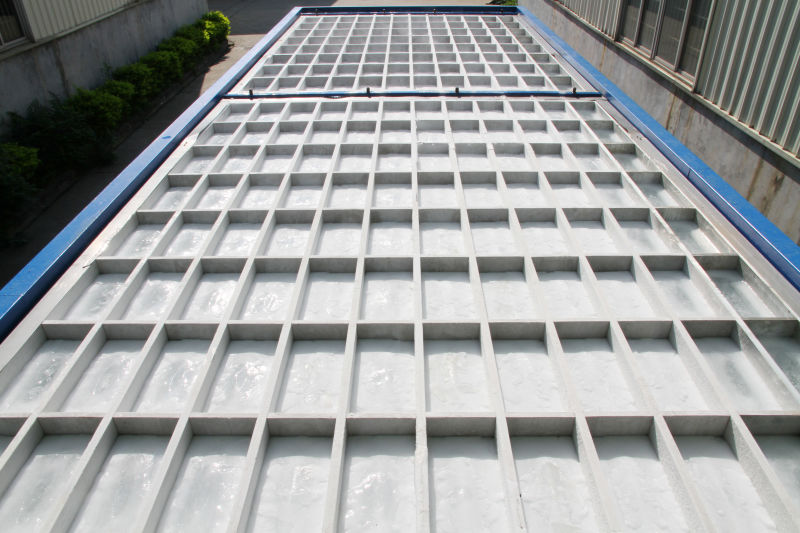

3. Easy to clean: The direct cooling block ice machine has a simple structure, is easy to clean and maintain, and can reduce maintenance costs.

Parameters

DAILY CAPACITY FROM 500 KG TO 3 TONS

Model
Item
BL-K04 BL-K05 BL-K10 BL-K20 BL-K30
Capacity (Ton/24hrs) 0.4 0.5 1 2 3
Compressor Brand Copeland Copeland Copeland Copeland/Bit zer/Refcomp Bit zer/Refcomp
Compressor Power (kw) 3 4 6 10(9) 18(14)
Refrigerant R22/R404A/R507
Ice Size 3kg/5kg 3kg/5kg 5kg/10kg 5kg/10kg 10kg/25kg
Dimension
(mm)
Length 1250 1250 3080 3780 4780
Width 1050 1050 1100 1120 1140
Height 1620 1620 1780 1950 1950
Cooling Way Air Cooling
Ice Harvest Way Automatic Manual Forklift

DAILY CAPACITY FROM 5 TONS TO 30 TONS

Model
Item
BL-K50 BL-K80 BL-K100 BL-K150 BL-K200 BL-K300
Capacity (Ton/24hrs) 5 8 10 15 20 30
Compressor Brand Bit zer/Refcomp Bit zer/Refcomp Bit zer/Refcomp Bit zer/Refcomp Bit zer/Refcomp Bit zer/Refcomp
Compressor Power (kw) 34 (28) 68 (56) 68 (56) 88 (68) 132 (102) 146
Refrigerant R22/R404A/R507
Ice Size 10kg/25kg 10kg/25kg 25kg/30kg/50kg 25kg/30kg/50kg 25kg/30kg/50kg 25kg/50kg
Dimension
(mm)
Length 5200 7500 8600 10890 11800 15500
Width 1700 2300 2500 2300 2200 3000
Height 2100 2500 2500 2500 2500 2700
Cooling Way Air/Water Cooling Water Cooling Water Cooling Water Cooling Water Cooling Water Cooling
Ice Harvest Way Manual Forklift Manual Forklift Manual Forklift Auto Rise/Fall Auto Rise/Fall Auto Rise/Fall

Ice size for choice. It also can be customized according to your need.

Ice Size/pc Ice Dimension (mm)
(Thickness*Width*Height)
Freezing Time
(Hours)
Ice Making
Frequency (Times)
5KG 95*130*500 3 7
10KG 95*260*500 3 7
15KG 123*300*500 6 4
123*215*710 6 4
20KG 123*285*710 6 4
25KG 123*350*710 6 4
155*280*710 8 3
30KG 155*335*710 8 3

Application

应用1

Food preservation

应用2

Concrete filling materials

应用3

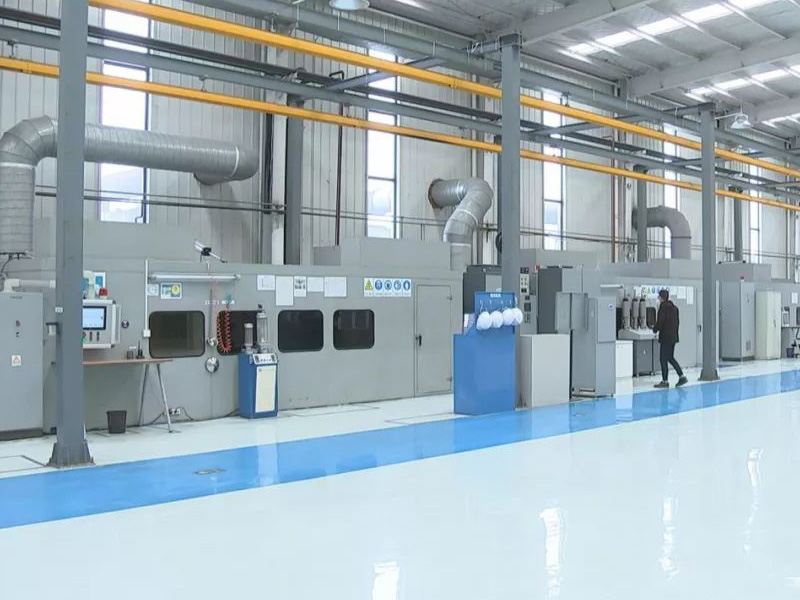

Workshop cooling

Our Turn Key Service

1. Project design

1. Project design

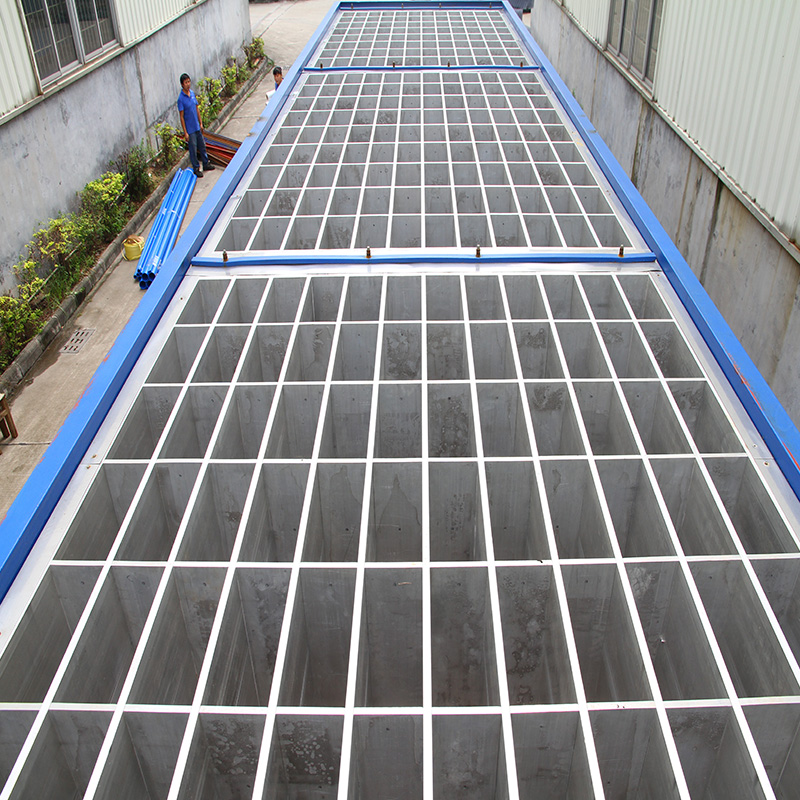

2.Manufacturing

2. Manufacturing

team5

4. Maintenance

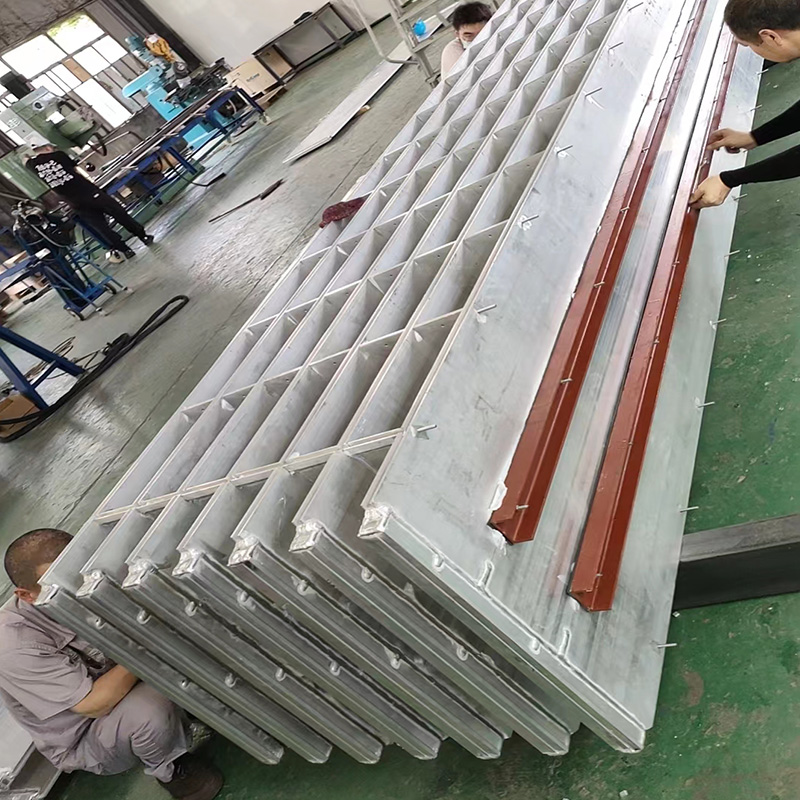

3.Installation

3. Installation
